Flexible Inox Rope Protection Mesh

Customized Flexible Inox Rope Protection Mesh,rod and tubular frame systems,Nets design and install assistant by Candurs cable mesh systems China.

Product Overviews

Product Description

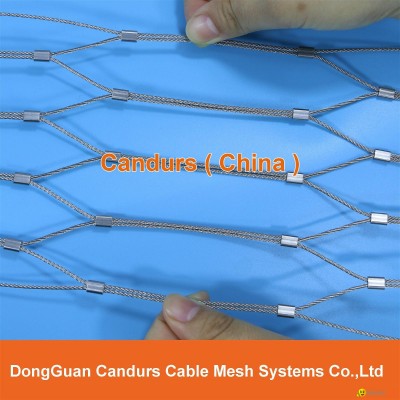

DecorRope flexible Flexible Inox Rope Protection Mesh is assembed by seamless ferrules and stainless steel wie rope.Diamond mesh when it is stretched at 60° angle ( Option: 90° angle ).

Advantages

DecorRope flexible Flexible Inox Rope Protection Mesh has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.

Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.Light weight,High open area % .Corrosion resistant,allows strongh airflow.Total pro-environment,recyclable,no toxic,non flammable.Maintenaance free,don't ask any special cleaning & coating.At least 10 years guaranteed.

Panel Shape

Customized Rectangular panel shape.Trapezoid panel shape,Triangular panel shape,circle panel shape,and other special shape.Customized net height and length.

Easily Install

DecorRope flexible Flexible Inox Rope Protection Mesh is main installed on tube frame, perimeter cables or wire rod with special border design Available 30 types different border plans to meet different install required.

Application

Building Facade screens,Green wall systemsBalustrade & RailingBird protection netting,Security platform fence. Isolate fence,Garden fence,Animal enclosures in zooAnd so on...

Order Guide

1. Available AISI 304  and 316
2. Cable diameter: 1.0 mm (7*7 ), ,1.5 mm (7*7 ), 2.0 mm (7*7 ) 3.0 mm (7*19)   ,4.0 mm (7*19)













3.  Opening
Opening width ( OW ) 20mm - 200mm.Opening Height ( OH ) 35mm - 346mm
Opening	Cable Diameter
OW X OH	1.0 mm	1.5 mm	2.0 mm	3.0 mm	4.0 mm
25 mm x 43 mm	CD1025	CD1525
30 mm x 52 mm	CD1030	CD1530
35 mm x 61 mm	CD1035	CD1535
40 mm x 69 mm	CD1040	CD1540	CD2040
50 mm x 87 mm	CD1050	CD1550	CD2050	CD3050	CD4050
60 mm x 104 mm	CD1060	CD1560	CD2060	CD3060	CD4060
70 mm x 121 mm	CD1070	CD1570	CD2070	CD3070	CD4070
80 mm x 139 mm	CD1080	CD1580	CD2080	CD3080	CD4080
100 mm x 173 mm	CD10100	CD15100	CD20100	CD30100	CD40100
120 mm x 242 mm	CD10120	CD15120	CD20120	CD30120	CD40120
160 mm x 277 mm	CD10160	CD15160	CD20160	CD30160	CD40160
180 mm x 312 mm	CD10180	CD15180	CD20180	CD30180	CD40180
200 mm x 346 mm	CD10200	CD15200	CD20200	CD30200	CD40200
Customized other size



























4.Opening Orientation : Horizontal ( H ) and Vertical ( V )

Whatever horizontal or vertical opening orientation,expect net's height and length can be processed.

5 . Border plans
Border design plans is the different of mesh edge patterns. which decide to the install methods will be choosed .the most popular plans L10,L18,L22,L24 ...
Contact us to know more

6. Nets height and length,and Quantity.

7. Drawing is necessary if it is available

Order No : e.g. CD1560 - 60°- H - L18 Send Inquiry : [email protected]

Packing Detail :

Express Shipment : Package film for each piece,Several pieces packed in 1 carton (Marked for each panel ),GWT less than 30 KG/Carton.
Air and Sea Shipment : Package film for each piece,total packed in Case. (Marked for each panel )
Without any our company name or LOGO on the package.

Delivery time : 10-15 days after received the payment

----------------------------------------------------------------------------------------
