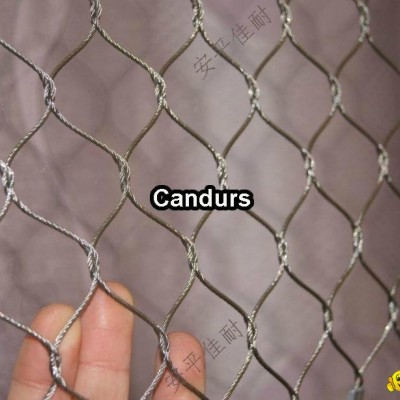

China Stainless Steel Cable Mesh manufacturer,factory,Candurs's Wovenrope™ stainless steel cable mesh, Knotted Mesh-Twisted Mesh-Woven Cable Mesh diamond opening when you stretched at 90 degree angle,unique design, widely use as security fencing, security screens, Animal cage, safe net etc.
Feature of stainless steel cable mesh:
Unique design idea
Flexible,elegant,discreet,filigreed,multifunctional
Light
Corrosion resistant,allows heavy airflow
Total pro-environment,recyclable,no toxic,non-flammable
once stainless steel cable mesh was installed,maintenance free,don't ask any special cleaning or coating
Long using life
Available Wovenrope™ woven cable mesh 304 and 316 stainless steel.
Cable diameter: from 1mm - 4mm
Structure: 7x7,7x19
Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Variety of loops solution
Customized cable mesh width and length
Easily install,stainless steel rope mesh can be fixed on stainless steel tube (frame) or tensioned with stainless fitting.
Standard specification:

OW X OH	Wire Diameter
OW X OH	1.2 mm	1.6mm	2.0 mm	2.4 mm	3.2 mm
25 mm x 25 mm	WD1225	WD1625
30 mm x 30 mm	WD1230	WD1630
38 mm x 38 mm	WD1238	WD1638	WD2038
51 mm x 51 mm	WD1251	WD1651	WD2051	WD2451	WD3251
60 mm x 60 mm	WD1260	WD1660	WD2060	WD2460	WD3260
76 mm x 76 mm	WD1276	WD1676	WD2076	WD2476	WD3276
90 mm x 90 mm	WD1290	WD1690	WD2090	WD2490	WD3290
102 mm x 102 mm	WD12102	WD16102	WD20102	WD24102	WD32102
120 mm x 120 mm	WD12120	WD16120	WD20120	WD24120	WD32120
