Stainless Steel Cable Net Tubular Frame

Customized Stainless steel cable net  tubular frames for balustrade,railing systems,easily install .supplied rectangular and rhombic tubular frames panel.

SS cable net tubular frame feature:

Wear and abrasion resistantCompetitive costEasy self installationAttractive and innovative designAlternative to infill,like bars,metal sheet and glassLong using timeMade in China

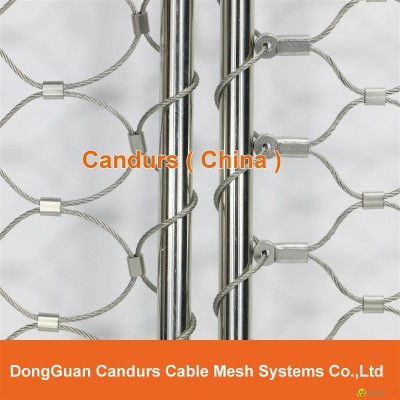

Stainless steel cable net tubular frame was made up of SS tube elements with stretched stainless steel cable mesh Stainless tube has stain finished,conners are welded.ss mesh made from high strength cables(construction 7 * 7) that offer a minimalist solution.

Stainless steel wire rope net was assembled by 316 grade stainless steel seamless ferrules and wire ropes,finished diamond mesh style when you stretched at 60 angle,rope diameter 1.5mm and 2.0mm,Opening width 40mm,60mm,80mm,other on demand.

Cusotmized 316 grade SS tube frame, available round tube diameter 16.9mm,21.3mm,26.9mm,thickness 1.6mm,2.0mm,square tube 20mm , 30mm.and other type of tube

Customized square and inclined (angle 29-37°) tubular frames panel size. Finished correct dimension at factory,stainless steel fitting was used for fixing to post,floor,wall or hand rail.
