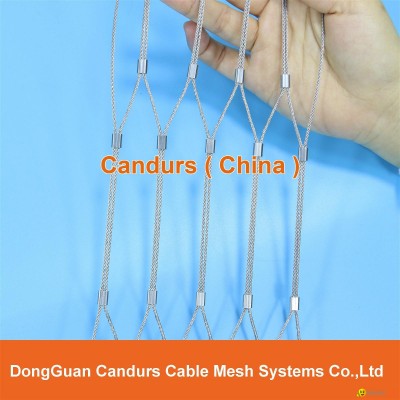

Stainless Steel Wire Rope Zoo Mesh

Unique design stainless steel wire rope zoo mesh is assembled by seamless ferrule/sleeve made from stainless steel wire rope,total 304,316 stainless steel finish. Diamond mesh style. High safety offers, architectural & security fencing application.

DecorRope

Feature

Flexible stainless steel wire rope zoo mesh has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.

Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.Light weight,High open area % .Corrosion resistant,allows strongh airflow.Total pro-environment,recyclable,no toxic,non flammable.Maintenaance free,don't ask any special cleaning & coating.At least 10 years rust and quality guaranteed.High security and safety.

Widely Application

DecorRope stainless steel wire rope zoo mesh widely use for building facade, balustrade & railing systems,green wall systems,security fencing,animal enclosure,bird protection net etc.

OEM Service

Colourful Solution

Candurs provide colourful stainless steel wire rope for Decorrope and Wovenrope flexible stainiless steel wire rope mesh, Available:

Black oxide hand woven stainless wire rope mesh.Colourful ferrules assembled with standard stainless steel wire rope.Colourful stainless steel wire rope assembled with standard ferrules.

frame Solution

Candurs provide flexible stainless steel cable mesh with wire rod,tubular frame.welded finish.Available:

Rectangular panel,trapezoid panel,round shape panel and other special shap panel.Stainless steel wire rod,round tube,square tube and other shape tube.

High Quality

Candurs DecorRope rope zoo mesh has same back and front face,flat and smooth surface,full DecorRope is assembled by high quality seamless ferrules,offer high safety.save install time etc.Promote your business and brand.

Advantage of DecorRope

Precision openingAccurately panel sizeVariety of edge design plansSpecial shape panels can be processed

Easily Order

1. Stainless Steel Wire Rope

Available AISI 304 and 316 stainless steel

Rope diameter : 1.0mm,1.5mm,2.0mm,3.0mm,4.0mm

Rope Diameter	1.0 mm	1.5 mm	2.0 mm	3.0 mm	4.0 mm
Rope Structure	7 x 7	7 x 7	7 x 7	7 x 19	7 x 19
Single Wire TS (N/mm2)	1770	1770	1770	1570	1570

2. Opening Size

Diamond mesh when it is stretched at 60° (standard ),other angle 30° - 90°

Opening size : 20mm x 35mm to 200mm x 347mm

Opening (mm) OW X OH	Wire Diameter
	1.0 mm	1.5 mm	2.0 mm	3.0 mm	4.0 mm
25 x 43	CD1025	CD1525
30 x 52	CD1030	CD1530
35 x 61	CD1035	CD1535
40 x 69	CD1040	CD1540	CD2040
50 x 87	CD1050	CD1550	CD2050	CD3050	CD4050
60 x 104	CD1060	CD1560	CD2060	CD3060	CD4060
70 x 121	CD1070	CD1570	CD2070	CD3070	CD4070
80 x 139	CD1080	CD1580	CD2080	CD3080	CD4080
100 x 173	CD10100	CD15100	CD20100	CD30100	CD40100
120 x 242	CD10120	CD15120	CD20120	CD30120	CD40120
160 x 277	CD10160	CD15160	CD20160	CD30160	CD40160
180 x 312	CD10180	CD15180	CD20180	CD30180	CD40180
200 x 346	CD10200	CD15200	CD20200	CD30200	CD40200

3.Opening Orientation:

4. Edge Pattern

Available No.30 different edge pattern finish to meed different install requirement

5. Nets height and length,and Quantity.

6. Drawing is necessary if it is available

7. Other required

Order No : e.g. CD1560 - H - L18- Panel size Email Us : [email protected]
