TITANIUM GR1 GR2 SPIRAL COIL
Specifications
1. Titanium spiral coil pipe
2. TA1, TA2, GR1, GR2, GR3
3. Size: According to your inquiry
4. Different type
5. In stock

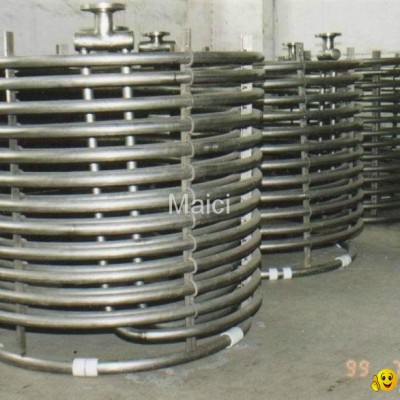

Titanium coiled tube
Titanium coils in special sizes and shapes, like superfine U coils, spiral coil, box type coil, drum type coil, 'S' type coils, tapered, oval type coil, circular coils, serpentine coil, double helical coil, triple helical coil, half pipe coils.
1. Size: According to customer's requirment
Dia5_114mm, thick: 0.5_5mm
Diameter more than Dia114, thick= more than 2mm
2. Material: Titanium GR1, GR2, GR3, GR4, GR7, GR9, GR12
3. Characteristics:
Titanium coiled tubes, have excellent strength, low density, low weight, nice mechanical property.
It can stand for both high and low temperature. In the appropriate oxidizing environment, it also has excellent corrosion resistance, good heat transfer performance.
4. Usage:
Titanium coiled tubes are widely used as environmental protection equipment, cooling pipe, titanium heat pipe, electroplating equipment, etc.
5. Quality standards of titanium coiled tubes: ASTM B338 AMS4928 ASTM B337 ASTM B861 ASTM B862, etc.
