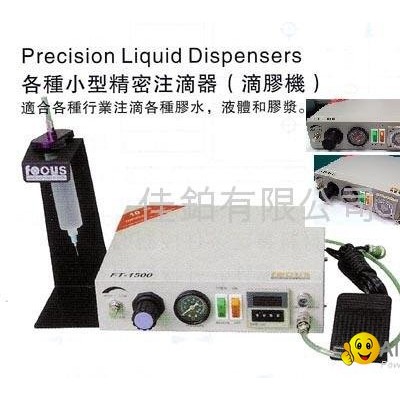

Precision Dispensers
Excellent Performance for any Type of Liquid or Past Fast, Neater Cleaner, Easier! Saving Material, Saving Cost! FEATURES: • Excellent Repeat Accuracy: less than 0.05% • Solid State Digital Fine Timer, From 0.01 Sec. To 99 Sec. • LED Display, Button Enter • Adjustable Vacuum Suck Back Function for Stopping Drip of Fluid Betweeen Dispense Cycles • Easy Operation • Wide Range Selection of Dispensing Amounts • High Cycle Rate: 600+/Min • Easy Maintenance • Easy to Incorporate into Fully Automatic Production Line SPECIFICATION Operating Air Pressure: 0.2 - 2kgf / cm Shot Timer Range: 0.01 - 99.99 Sec. Cycle Actuation: One-touch or Interuptable Operating Model: Timer / Manual Toggle Switch Power Source: 220V / 110V AC +10% 50/60Hz Air Source: Max. 8.0 kgf /cm Non Lubricated Dry Air Operating Speed: 600+ Cycles / Min. Input Signal: Edge Trigger Overall Dimensions (mm): 284 (W) x 216 (D) x74 (H) Weight: 2.4Kg STANDARD ACCESSORIES • Power Cord, Foot Switch 1pc each • Air Filter 1set • Syringe Stand 1pc • Barrel with Stopper 5sets • Receiver Head Assembly 1set (AI Alloy, 1 M PU Tubing, 10cc, 30cc and 50cc Available) • Needle and Cap 1pack (15pcs, Gauge from 15 to 30) .
