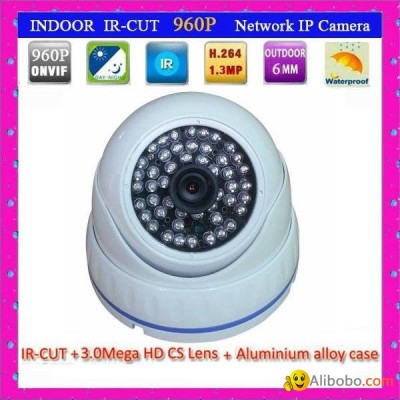

2014 hottest 1.3 megapixel hd dome ip camera

Model NO.

WTL-B1048H

WTL- B1048T

WTL- B1048ST

Camera

Image Sensor

1/3" SONY 1.3 MP

1/3" Aptina 1.3MP

1/3" SONY 1.3 MP

CMOS Sensor IMX238

CMOS Sensor AR0130

CMOS Sensor IMX238

Main processor

HI3518C(Hisilicon)

DM365 (TI DaVinci™)

DM365  (TI DaVinci™)

Resolution

960P

Effective Pixels

 1280(H)*960(V)

TV System

PAL/NTSC

Electronic Shutter  Time

Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec

Sync System

Internal

Usable Illumination

0.01Lux

0.1Lux

0.01Lux

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

Lens6mm/F2.0 (3.6mmis optional)

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Night Vision

Infrared LED

5X48PCS

Infrared Distance

30M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100base-T)

Protocol

IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS

ONVIF

Support onVIF 2.0

P2P

YES, Support QR Code

POE

Optional, Support IEEE 802.3af

WIFI

N/A

Video Delay

 0.3S (Within the Lan)

DualStream

Main Stream: 1280*960, 1280*720,   Sub Stream: 704*576, 352*288

IE Brower

IE6-11

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Compression

H.264/JPEG,Support back AVI format.

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC,  FLK(Flicker Control)

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, an, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian

General

Housing

Vandalproof( metal )

Anti-cut Bracket

NO, Without Bracket

IR Cut Filter

YES

Operation Temperature

-10°C ~ +50°CRH95% Max

Storage Temperature

-20°C ~ +60°CRH95% Max

Power Source

DC12V±10%, 900mA

Dimension

131 x 93(H)mm

Weight

800g
