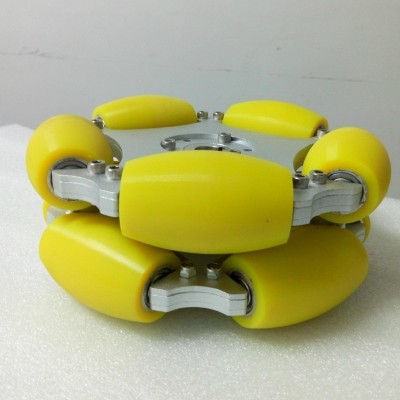

203MM ALUMINUM OMNI WHEEL WITH PU ROLLER(80KG~100kg LOAD )14194

This 203mm heavy duty double aluminum Omni-directional wheel is a robust, durable and double row wheel that provides easy 360 degree movement, with rotational and sideways maneuverability. The Omni wheel is used for robotic, trolleys, transfer conveyor, shipping carts, l age and so on.

Key Features:

• Diameter: 8 inches(203mm)

• Axial width: 87mm

• Number of plate: 2

• Number of roller: 10

• Body material: Aluminum alloy

• Roller material: pu

• Roller bearing : Bearing Rollers

• Net weight: 4.5kg

• Load capacity: 80kg~100kg(per wheel)

Drawing of omni wheel 14194

Benefits:

•Omni direction movement and rotation

•Easily direction control and tracking

•Make turning fast

•Precision placement—no offset movement

•Require no lubrication or field maintenance.

•Unique fixed orientation

•Simple & stable mounting options

•Direct tracking & directional control

•Superior load stability

Applications

•Material handing equipment

•Shopping carts and l age

•Freezer duty torlleys and carts

•Conveyor transfers pipe rollers

and other inverted applications

•Ball transfer table alternatives

•Robotics

•Mobile furniture
